OPTICAL INLINE PROBE SYSTEM

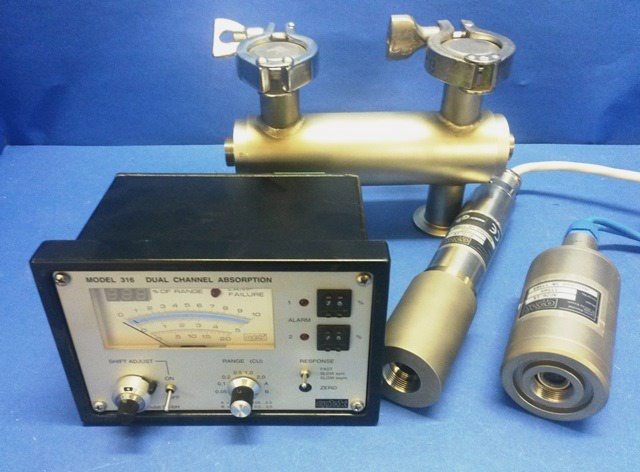

Testing set up including a dual channel color measurement with turbidity compensation, VIS-Absorption (385-1000 nm and 385-600 nm), double channel monitor converter Model 316, the N10 quadruple connector pipe set. Used for inline control industrial sanitary CIP/SIP EX applications to high-pressure (0.01-100 bar), high-temperature (0-120°C) industrial applications. The source is a Tungstène lamp 5,0 V DC, 970 mA. Optical path 1-1000 mm. Accuracy < ± 0,05%, repetability < ± 0,5%, linearity < 1% of range (0 – 0,05 à 3 CU). Compatible with Optek Control 4000 family.The crystal sapphire pyrex optical window provides superior resistance to all abrasive and corrosive media (protection almost better than IP65). Stainless steel 316L. Connection triclamp 1''. The sensor is coupled with the Optek 316 monitor, converter and transmitter, dual channel absorption with 3-digit LED display and analog display. 0/4 – 20 mA-output. 2 independent alarm setpoints. Shift adjust and 2 CU sensibility range 0.05-0.5 and 0.5-3 selector. Supply 230VAC - 30VA.
