GEAR MOTOR

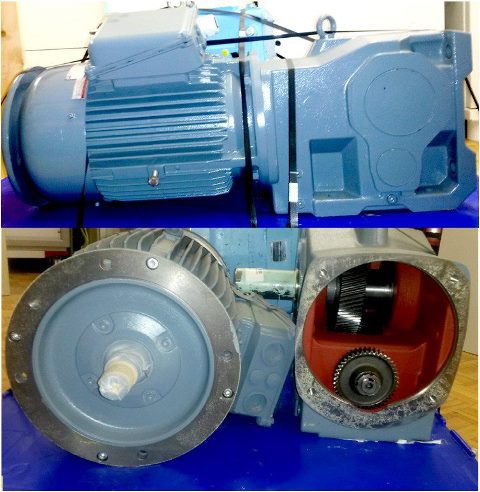

Motor reducer Nord Drivesystems SK 9042-160 M/2 composed by an electric motor and a right angle helical bevel gearbox. 13 complete systems are available. They are associated to Waukesha pumps 220UII sold separately on Provendum. Systems are in mint condition, as new, no rust, no scratch. They have been mounted for a pilot test of a biopharmaceutical plant but never entered in production. Gearbox SK 9042: 3 reduction ratios are available: 8.83, 9.39, 11.4. Max torque 2800 Nm. Shaft dia: 60mm. Motor: Nord Drivesystems electric motor 160 M/2 TF RD, Delta 400/690 Y; 11 kW /cos phi 0.90; 2925 t/min at 50 Hz; Jsol.-kl: F; IP: 55. Compliant VDE0530.84. The motor is provided with 3 thermistor / PTC sensor and protected from overheating. Total weight: 200kg. For transportation cost estimation: air freight about SFr 200.00 + SFr 0.50 per kg per 1000 Km; Ocean freight about SFr 500.00 + SFr 0.10 per kg per 1000 Km
